More Info / OEM machinery matrix

OEM detection equipment, mapped cleanly.

Datasheet-based reference page for the specific OEM machines Vision Systems handles — walk-through metal detectors, handheld metal detectors, X-ray baggage scanners, and trace / vapour explosive detection systems.

Garrett Vehant MS Detection

01 / Garrett Metal Detection

Walk-through and handheld metal detection systems.

Walk-through metal detector

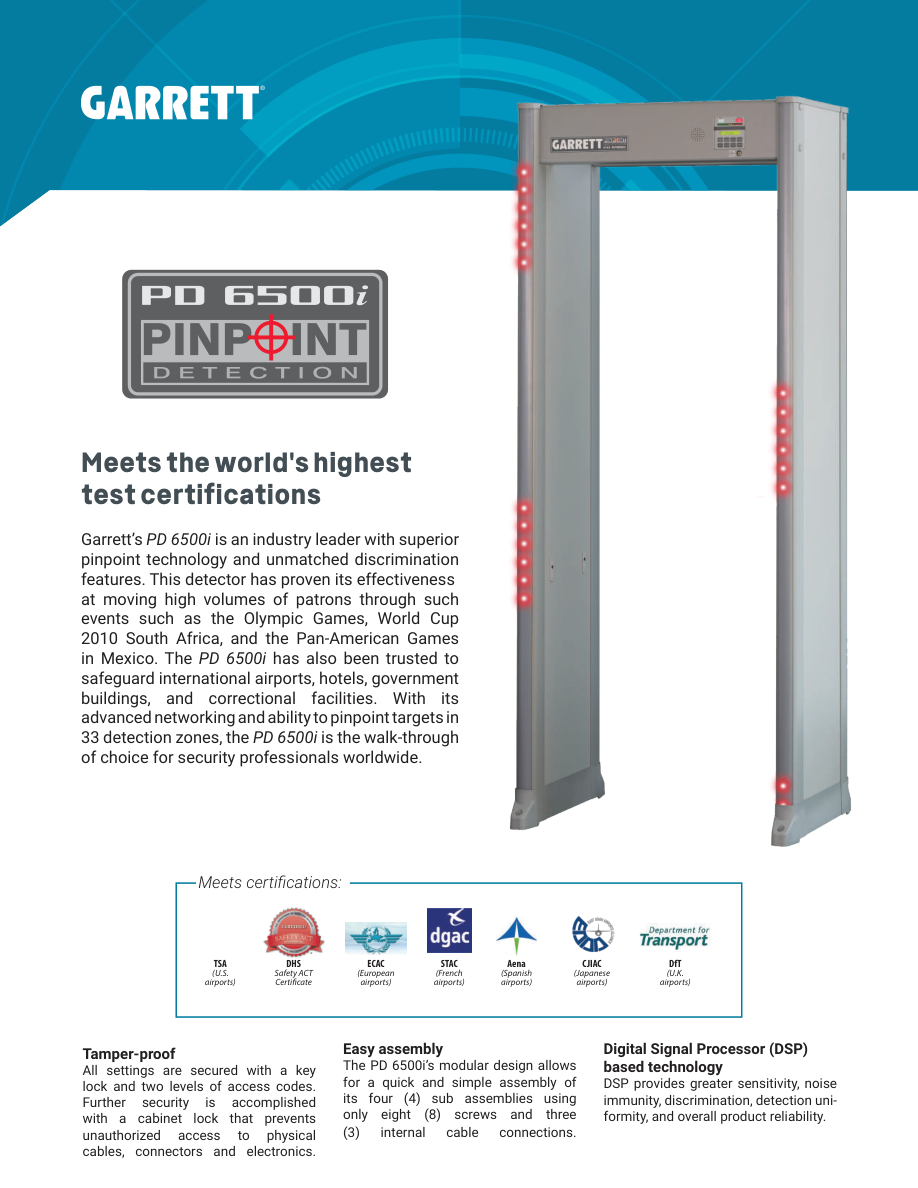

PD 6500i

33-zone walk-through detector with pinpoint detection, bilateral scanning, DSP-based technology, pacing lights and advanced broadband target analysis.

33 independent detection zones
More than 20 standard programs
Up to 200 sensitivity levels
TSA, ECAC, STAC, Aena, CJIAC and DfT airport certifications listed
Optional 10-hour battery pack

Handheld metal detector

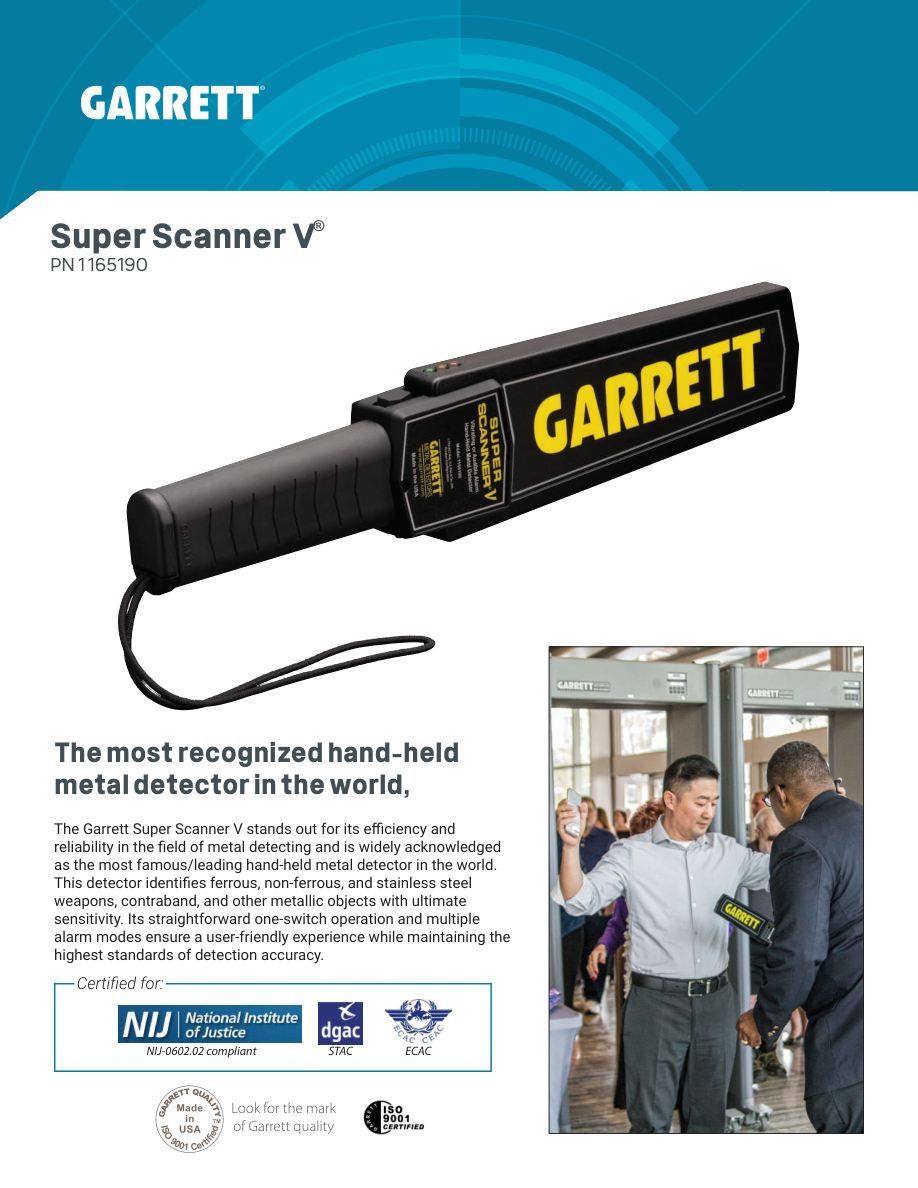

Super Scanner V

Recognized handheld detector for ferrous, non-ferrous and stainless-steel weapons, contraband and metallic-object screening.

Large 8 inch scan surface
Audible alarm, bright red LED and selectable vibration
Self-calibrating digital microprocessor
NIJ 0602.02, STAC and ECAC certification references
3-year limited parts/labor warranty

Handheld metal detector wand

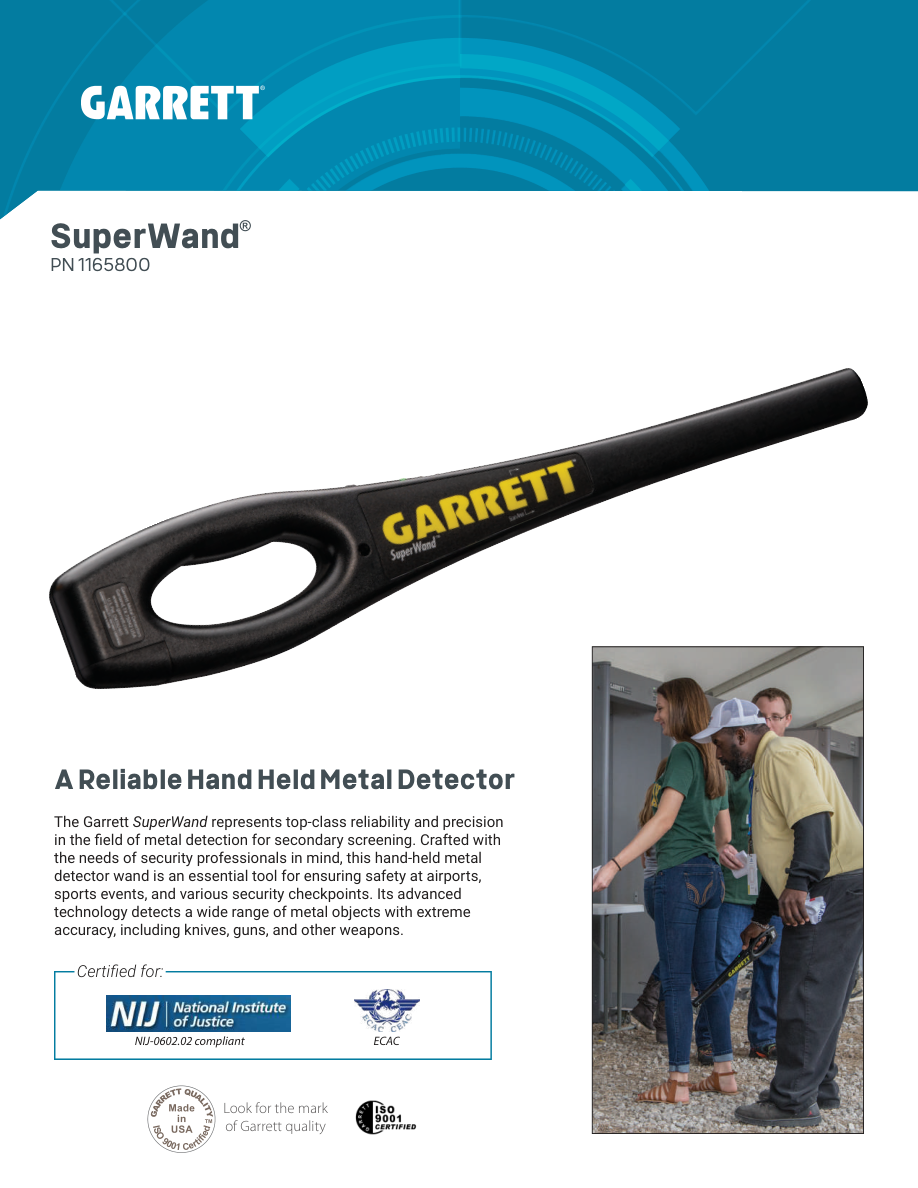

SuperWand

Ergonomic wand detector for secondary screening at airports, sports events and security checkpoints.

360° detection field with tip pinpointing
8.75 inch elongated scan surface
Audible or silent/vibrate alarm modes
NIJ 0602.02 and ECAC certification references
Rugged high-impact construction

02 / Vehant Technologies

KritiScan multi-energy X-ray baggage scanning systems.

Multi-energy X-ray baggage scanner

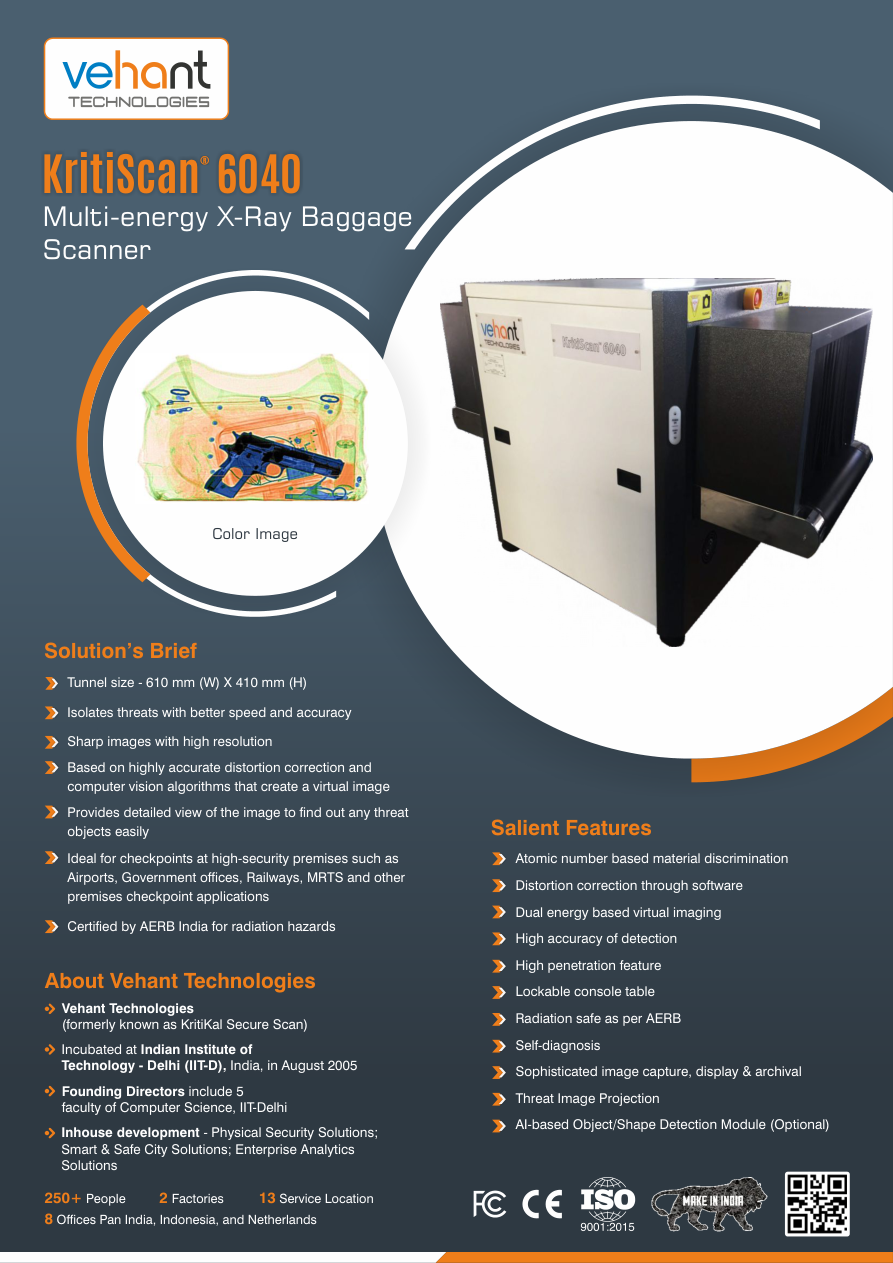

KritiScan 6040

Checkpoint X-ray baggage scanner with atomic-number material discrimination, distortion correction, dual-energy virtual imaging and high penetration.

Tunnel size: 610 mm × 410 mm
Max conveyor load: 160 kg
Steel penetration: 35 mm
Image resolution: 1280 × 1024 pixels or better
Optional AI-based object / shape detection module

Large-tunnel X-ray baggage scanner

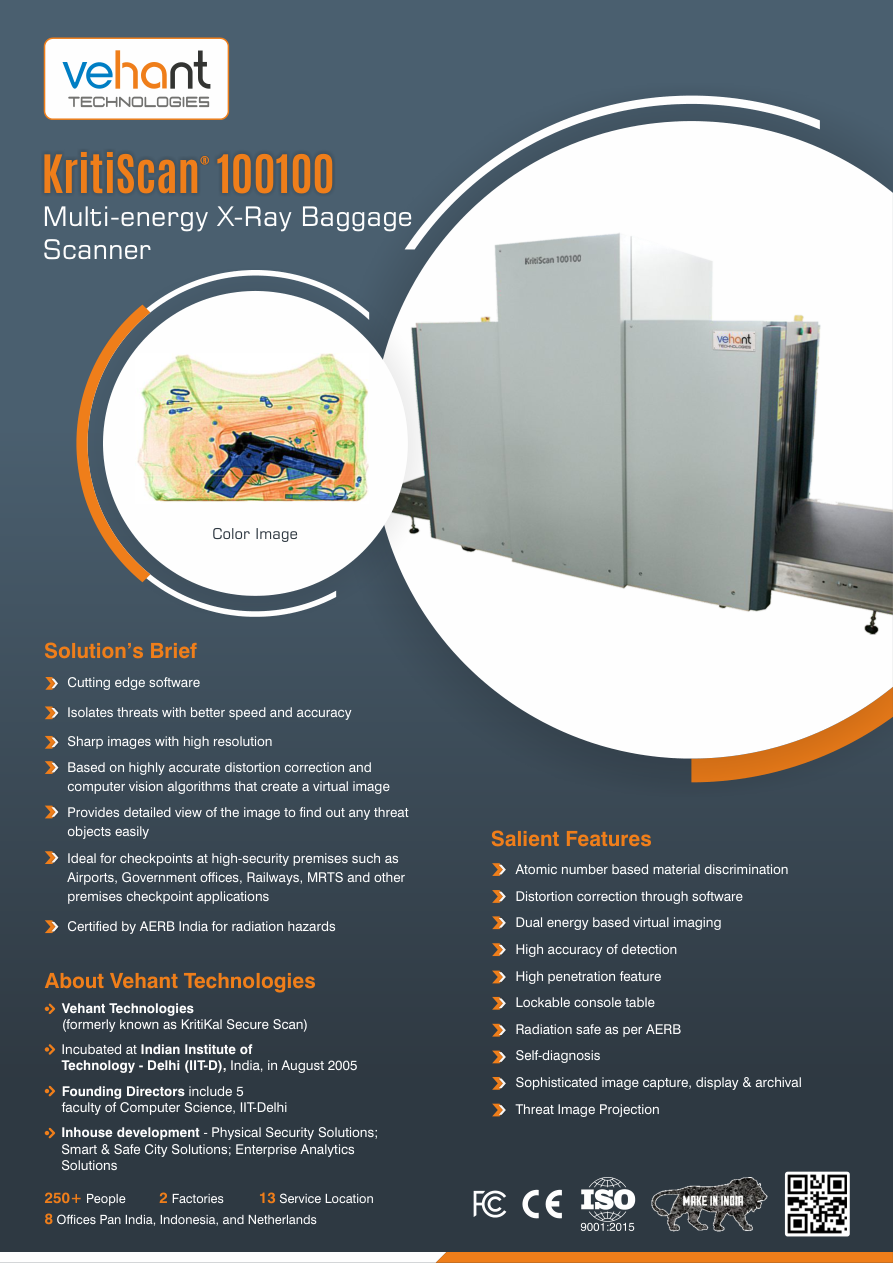

KritiScan 100100

Large tunnel scanner for high-security premises with multi-energy screening, threat image projection, image archival and AERB radiation-safety reference.

Tunnel size: 1010 mm × 1010 mm
Max conveyor load: 200 kg
Steel penetration: 30 mm
4/6 color material classification
Central supervisor console optional

03 / MS Detection

Trace, vapour, explosives and narcotics detection systems.

Explosives and narcotics trace & vapour detector

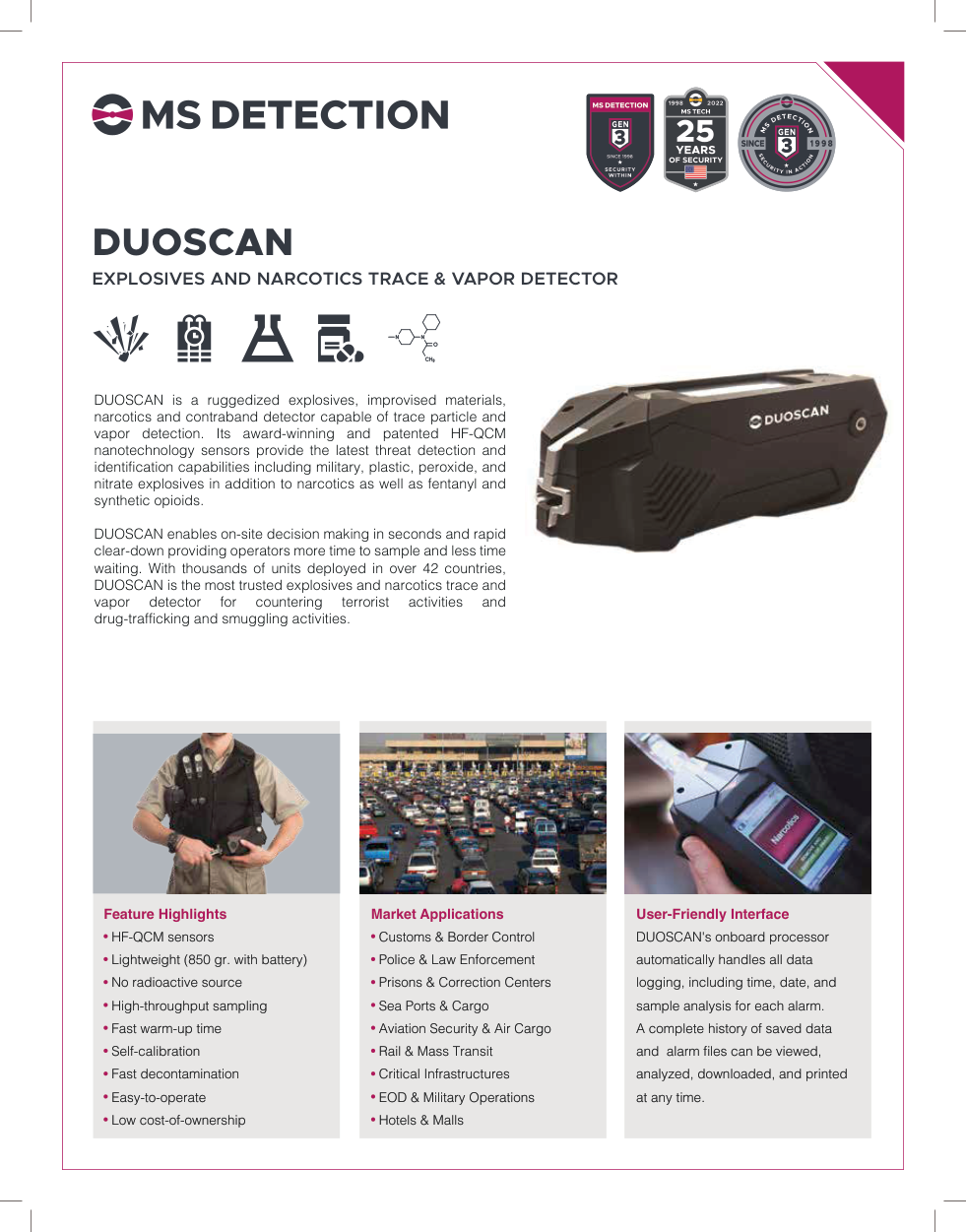

DUOSCAN

Portable trace particle and vapour detector for explosives, narcotics, contraband, fentanyl and synthetic opioids using HF-QCM nanotechnology sensors.

Trace particle, vapour sampling and vapour sniffing modes
Analysis time: 7–15 seconds or less
Weight: 850 g with battery
No radioactive source
6–8 hour hot-swappable lithium-ion battery

Trace and vapour explosives detector

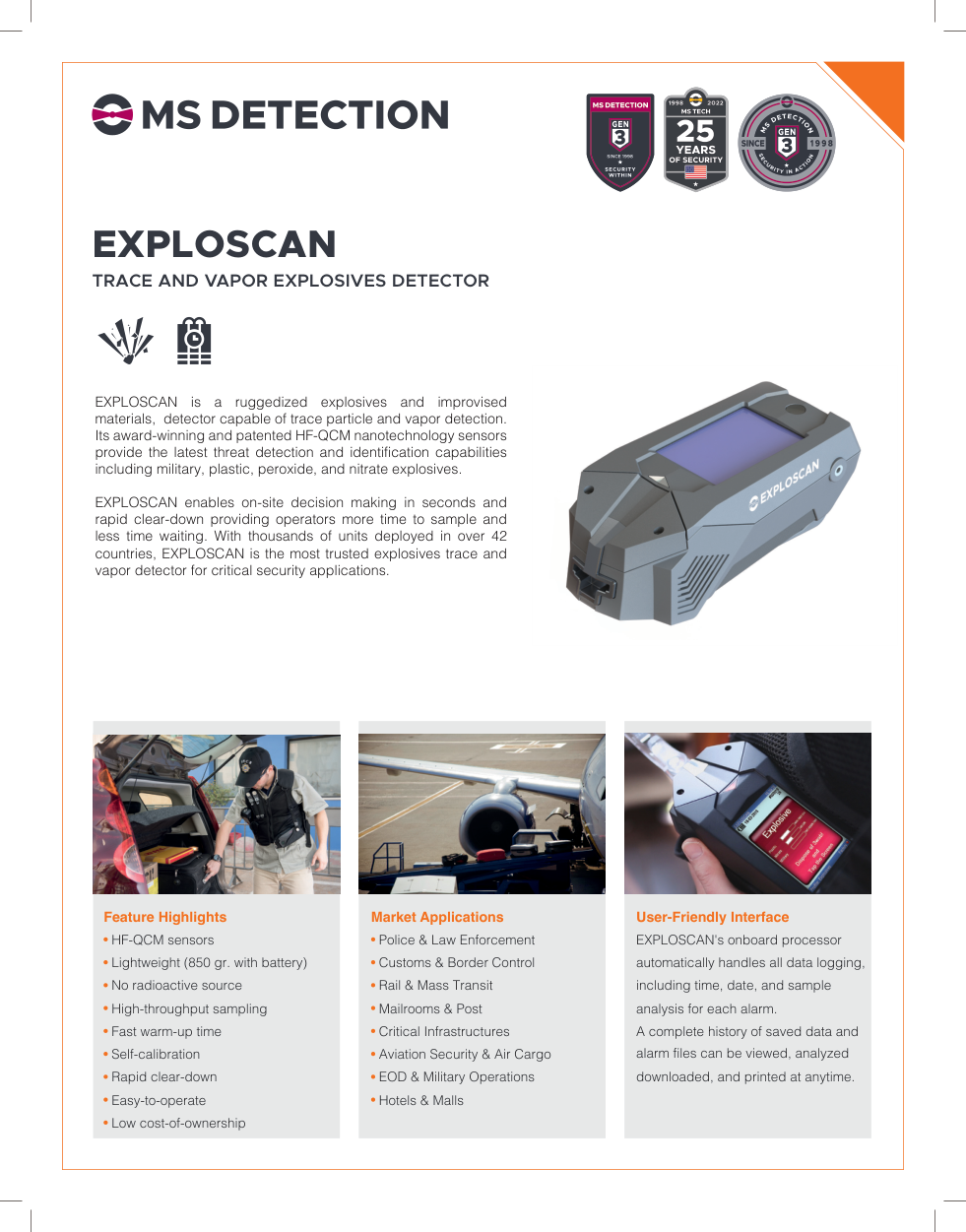

EXPLOSCAN

Explosives detector for trace particles and vapours covering military, plastic, peroxide and nitrate explosives with rapid clear-down.

HF-QCM nanotechnology sensors
Analysis time: 7–15 seconds or less
Less than 2% false alarm rate listed
3.5 inch anti-reflective color touchscreen
CE Mark, EMC and FCC certification references

Desktop trace explosives and narcotics detector

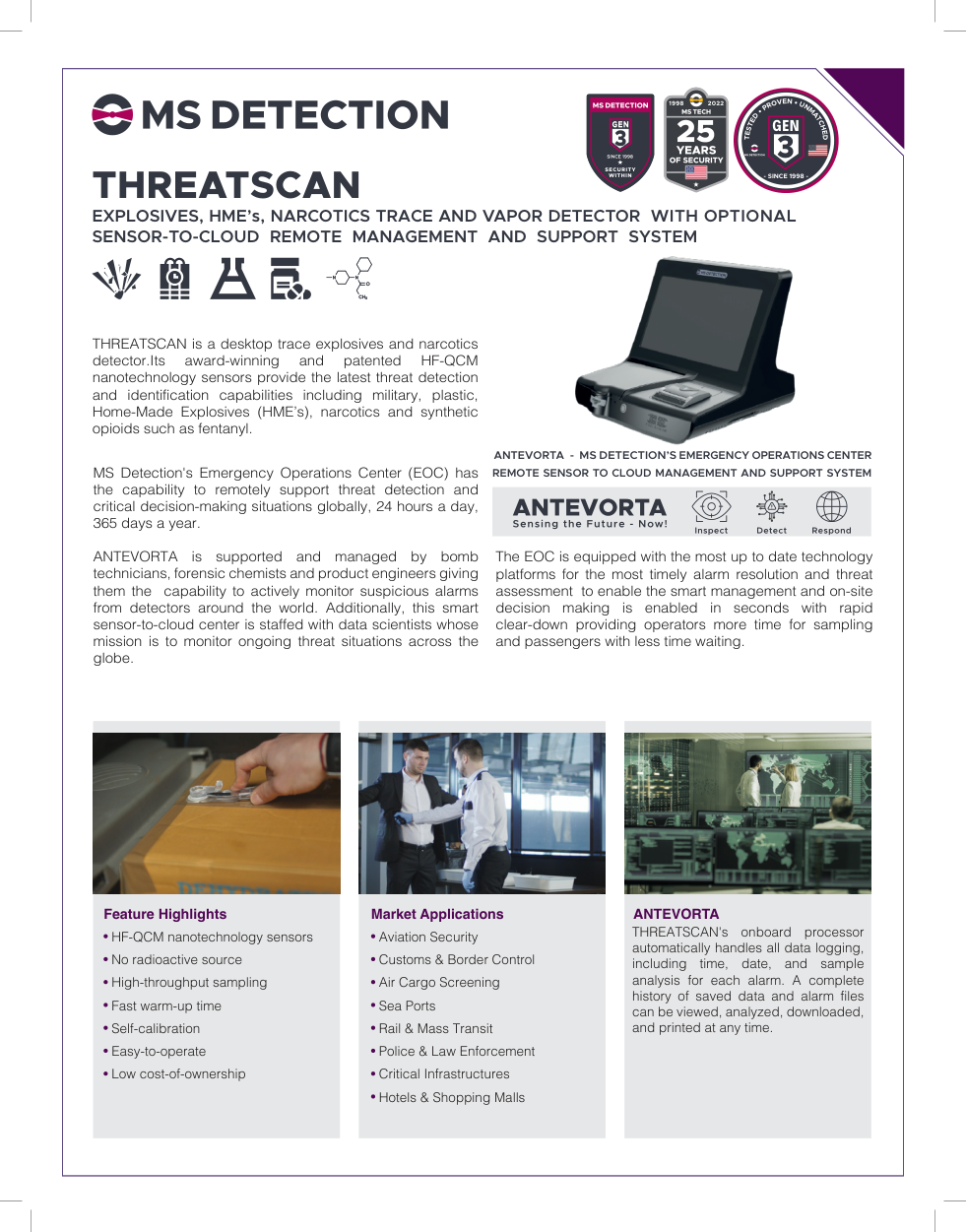

THREATSCAN

Desktop detector for explosives, HMEs, narcotics and trace / vapour detection with optional ANTEVORTA sensor-to-cloud support.

15.6 inch high-resolution color touchscreen
Analysis time: 10 seconds or less
Integrated printer
Ethernet, USB and optional Bluetooth/Wi‑Fi
Weight: 10 kg
